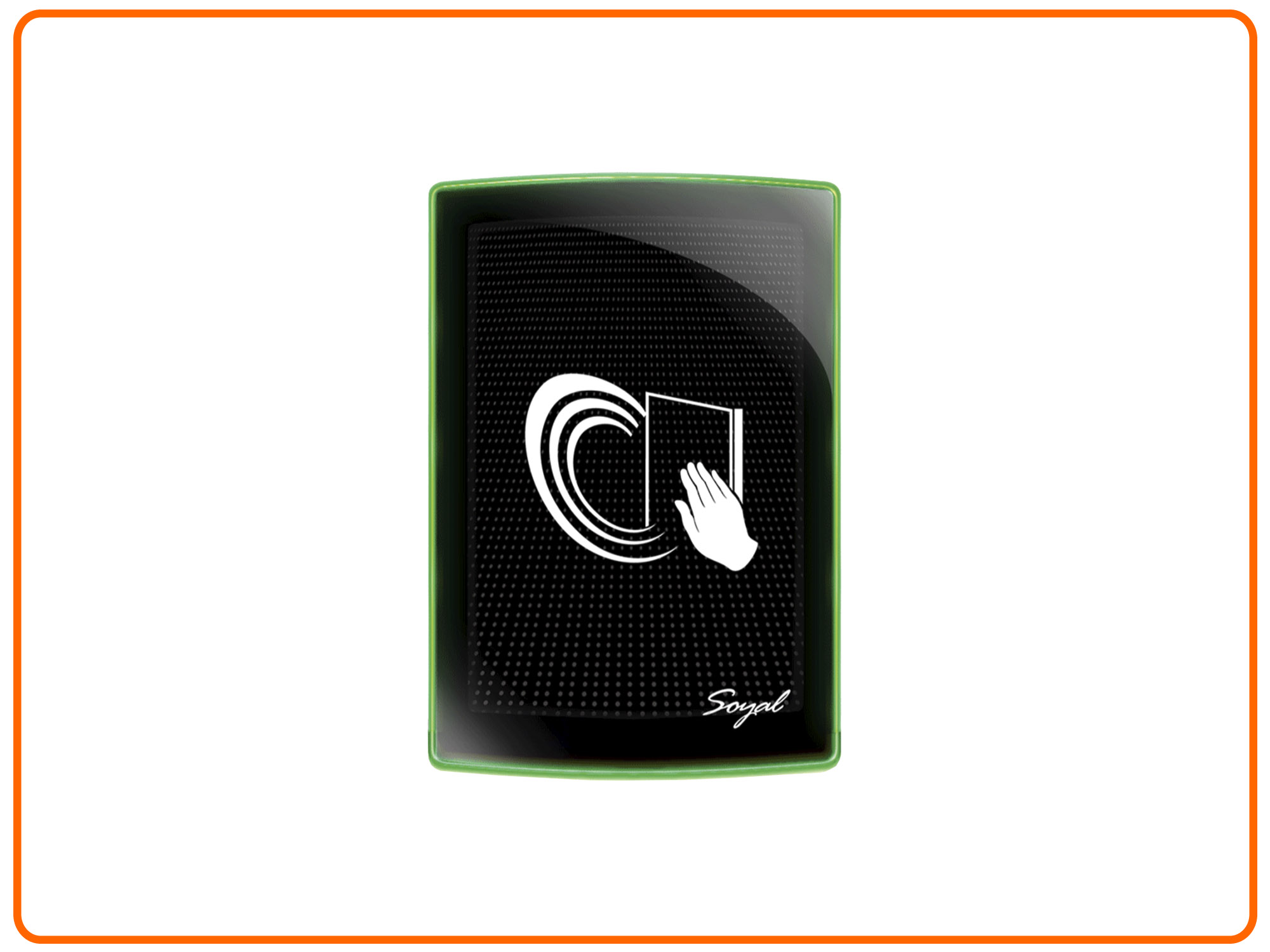

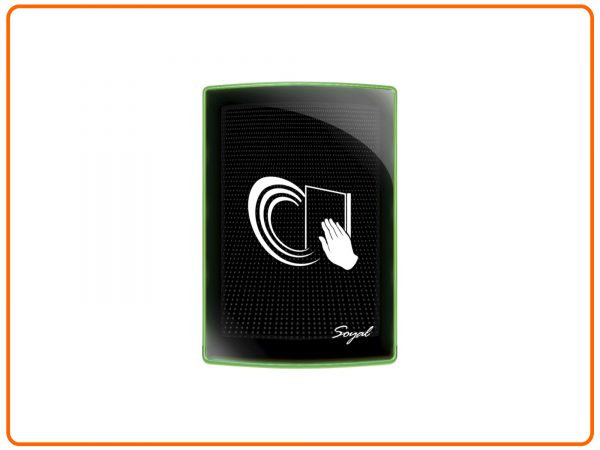

AR-888-PBI

ปุ่มเปิดประตู แบบไร้สัมผัส


คุณลักษณะ

Item NO. AR-888-PBI
Detection Distance 3-5 cm
Power Supply DC 9~15V
Current Capacitive:12VDC@50mA max.during activation(OmA or 25mA during standby)
Infrared:12VDC@100mA max.during activation(OmA or 50mA during standby)
Operating Temperature -20℃ to ~ +65℃
Life-span Infrared Sensor : Approx. 500,000 times(1A~0.03A/DC 30V)
Contact No
Dimension(mm) US : 118(L)X81(W)X9(H)/34(H)
EU : 88(L)X86(W)X9(H)/34(H)
LED Ring GR:Green&Red
