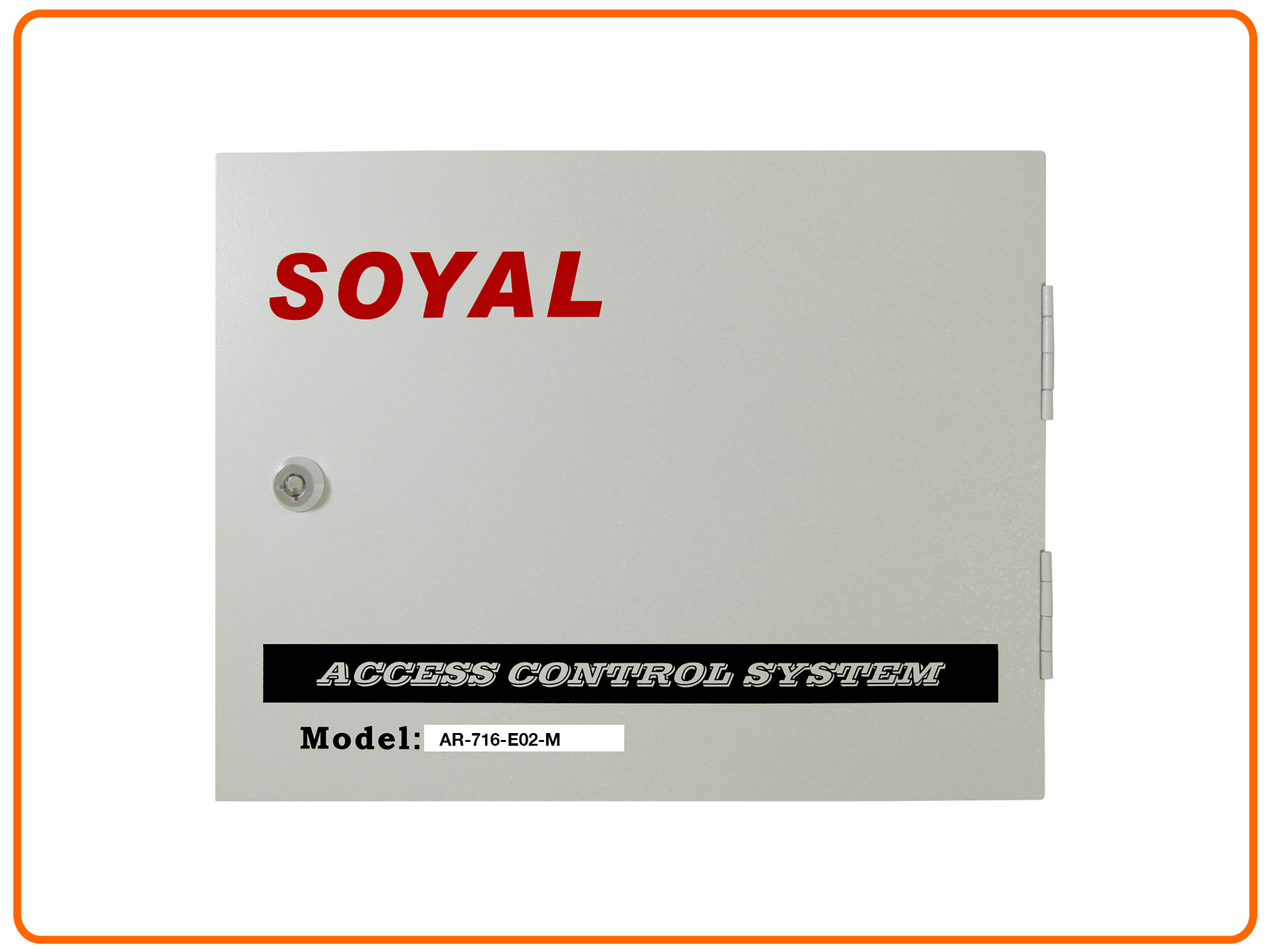

AR-716-E02-M_W3AR-716-E02-M_W3
AR-716-E02-M

ตู้ควบคุมแบบกลุ่มประตู


จุดเด่น

◎ Support stand-alone / Networking operation mode, and auto-switch mode function
◎ Individual controller with 2 external WG reader for more system security
◎ 8 sets of DI for egress button input, tamper resist, door contact
◎ 4 sets of relay for lock, alarm, and other proximities
◎ Built-in Watchdog to prevent system from hanging
◎ User capacity: 3,000; Event log: 1,456
◎ Access mode: card only, card or pin, card & pin, pin only
◎ Anti-pass-back
◎ Calendar built-in
◎ Supports functions like door sensor error, door-open too long, force open alarm
◎ Supports 11 time zone in networking mode
◎ 2 sets of auto-open zone in standalone mode
◎ Extendable with other brand devices

คุณลักษณะ

Item NO. AR-716-E02
User Capacity 3,000
Communication Interface-Host Host Node:1~128
RS-485:9600 bps(N,8,1)
Communication Interface-CH(Slave) WG: 2 Readers
Frequency No
Installation Environment No
Intput Digital Input : 2 Egress(R.T.E.)/ 2 Door contactr/ 2 Housing open detection
Output Relay Output: 2 Lock Relay/ 1 Alarm Relay/ Prepared for 1 Relay output
Weight(g) Plastic Mounting Base:130(L)X1750(W)X32(H)
PCB:110(L)X147(W)X20(H)
Dimension(mm) Plastic Mounting Base:130(L)X1750(W)X32(H)
PCB:110(L)X147(W)X20(H)
