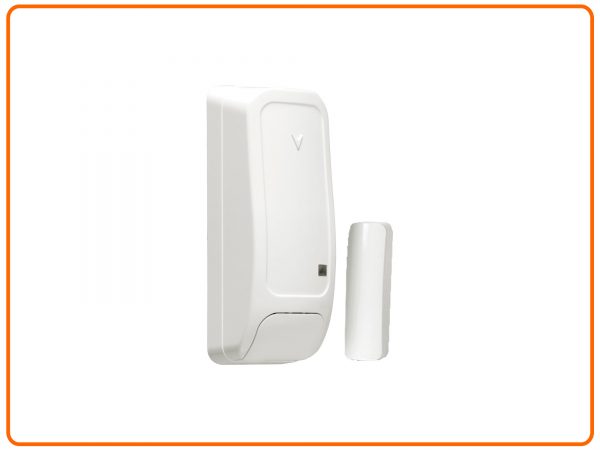

MC-302E PG2

PowerG Wireless Door/Window Contact with Wired Input


Specification

  • Designed primarily for protecting doors and windows
  • User-selectable operation of auxiliary input as NC or EOL (end-of-line loop with NC or NO sensors)
  • Transmission range is far greater than the industry standard – enabling repeater-free installations even in large premises
  • Longer battery life for up to 8 years (in typical use)
  • Visible signal quality indication shown on the device
  • PowerG two-way Frequency Hopping Spread Spectrum FHSS – TDMA technology – provides robustness and reliability closer than ever to wired systems
  • Employs the proven AES-128 (128 bit key) advanced encryption algorithm for correct message identification and protects the alarm system from code grabbing and other attacks
  • Continuously measures communication quality and automatically sets transmission power to the minimum required for reliable communication
  • Configured from the panel – no hardware switches and no need to re-open the detector once closed
  • Low-battery signaling
  • Compatible with PowerMaster residential security systems and PowerG receivers
