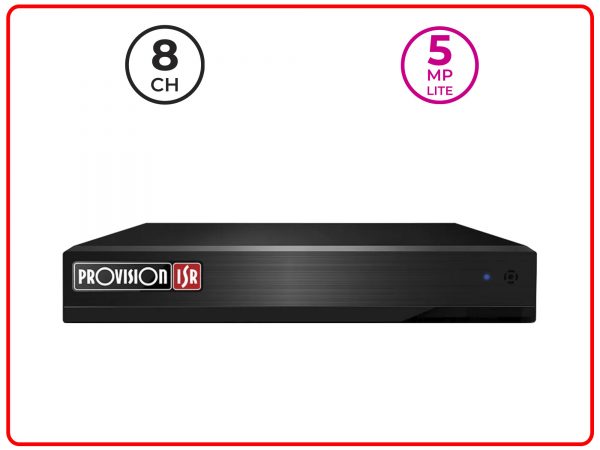

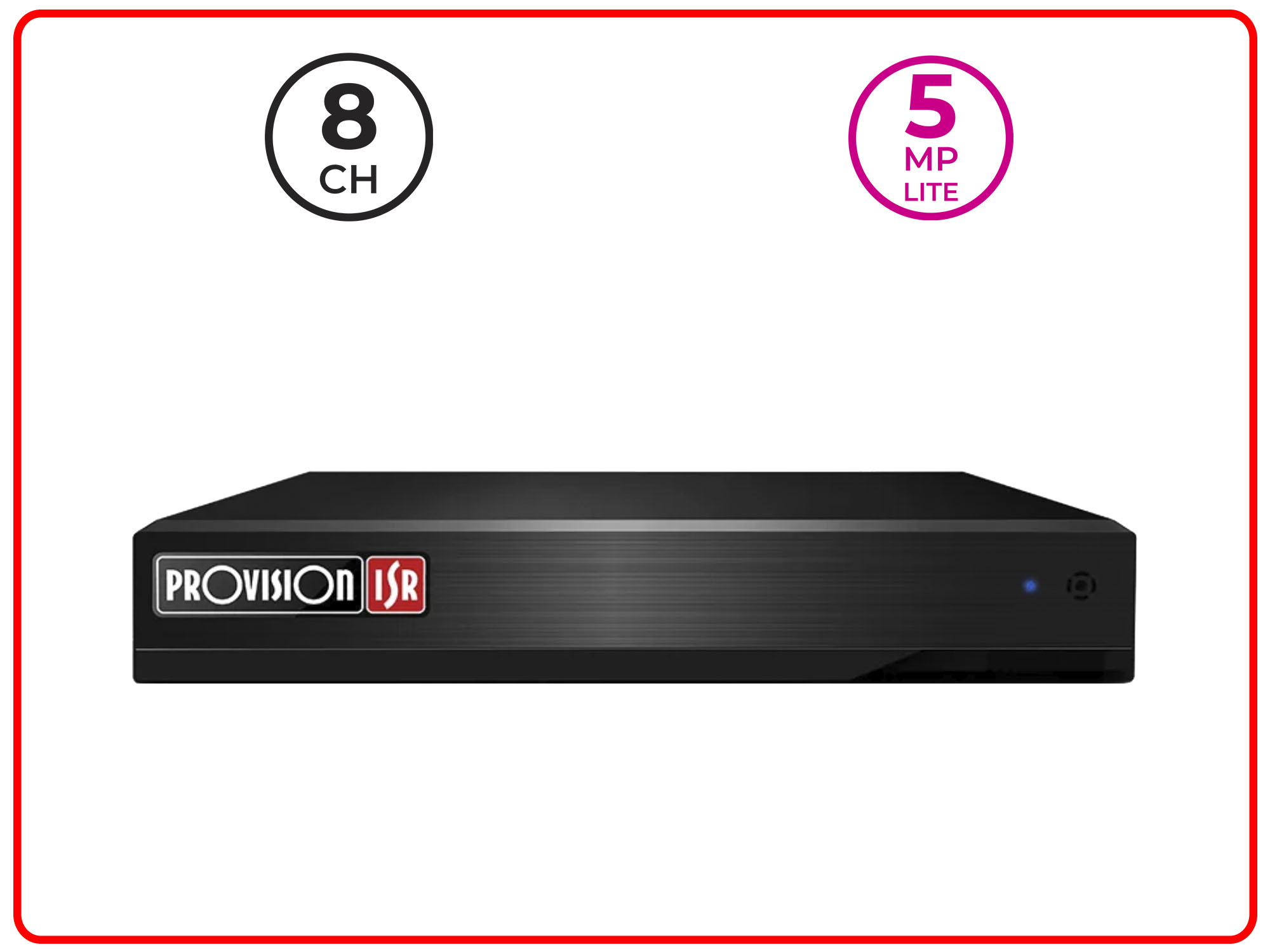

Specification
Video Input:
- 8CH Standard BNC + 4CH IP
Video Output:
- HDMI – FHD
- VGA
- CVBS
Recording:
- HD Analog: 3K/5MP Lite: up to 10FPS Per Channel /
4MP Lite / 2MP: up to 12/15FPS Per Channel / 2MP Lite / 1MP: up to 25/30FPS Per Channel
- CVBS: 960H: up to 25/30FPS Per Channel
- IP: 5MP and lower: 25/30FPS Per Channel
Playback:
- Local: 8Ch Simultaneously
- Remote: 4Ch Simultaneously
Audio:
- Input: 1CH + IPC Inputs
- Output: 1CH + IPC Outputs
Alarm:
- Input: IP Cameras only
- Output: IP Cameras only
Storage:
- 1 x SATA (Up to 6TB each)
Network:
- 1 x RJ-45: 10/100Mbps
PTZ Support:
- RS-485 / CoC / IP over Network
Power Supply:
- DC12V/2A
Analytics:
AI by IPC:
- DDA1 Analytics Supported by the camera
AI By DVR:
- AI Object detection, Line Crossing/Sterile Area (Up to 1 channel, at the expense of 4 SMD channels)
Remarks:
- The following features are based on firmware v1.4.0 and are subject to firmware version changes.
